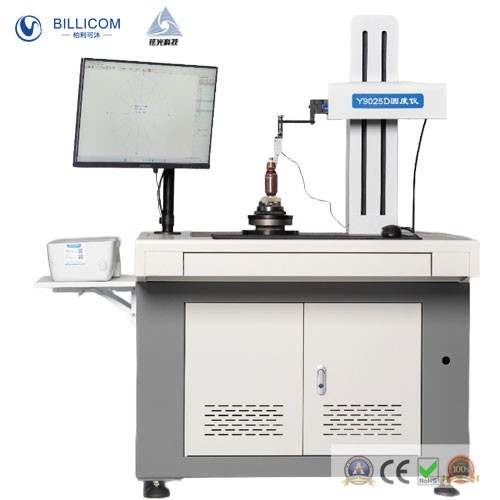

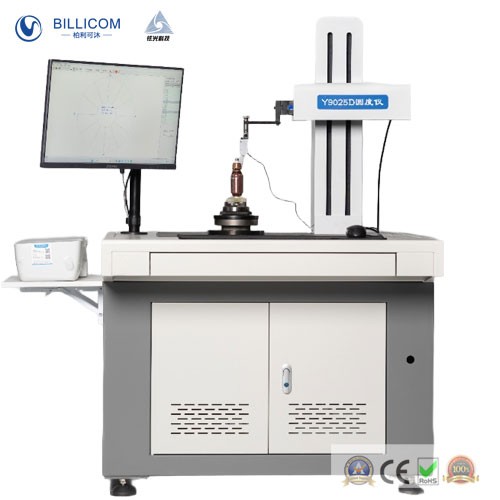

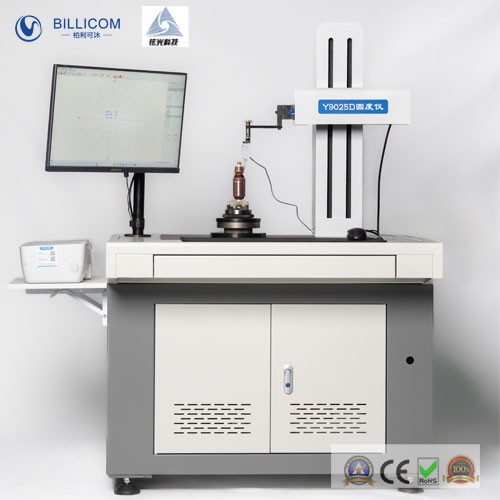

Low speed Precision Roundness Measuring Instruments

Features：

Low speed Precision Roundness Measuring Instruments

* The rotary measuring turntable of the instrument adopts a high precision air bearing spindle structure, and the spindle of the instrument has high precision, no wear, and a long service life;

* The instrument adopts the WINDOWS operating platform and professional measurement software, with a simple and intuitive measurement interface and convenient operation; Real time display of graphic data, saving and archiving, printing at any time, graphic analysis reports, intuitive and clear;

* The instrument is equipped with a universal leveling worktable as standard, which makes workpiece adjustment convenient and fast, and has high detection efficiency;

* The instrument is equipped with ruby measuring needles of various specifications and lengths, and can be optionally equipped with our company's specially designed nylon measuring head to measure special workpieces;

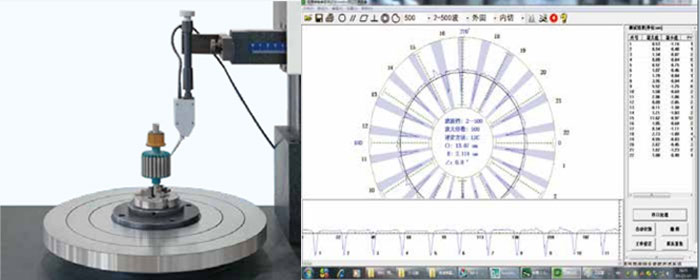

* The measurement of the motor rectifier adopts specialized measurement and processing software, and the same interface can display parameter values such as roundness, runout, single piece runout, and adjacent piece runout;

*No special requirements for the usage environment, can be used in workshops and metrology rooms;

*It can perform spectral analysis on the surface state of parts and provide the amplitude of any wave;

*Automatic recognition of interruptions, automatic and manual removal of notches, and measurement of roundness for some arcs;

*The measurement operation is set with mouse and keyboard shortcuts, and users can freely choose according to their operating habits.

Y90 series Low speed Precision Roundness Measuring Instruments is suitable for measuring parameters such as roundness, waviness, coaxiality, perpendicularity, parallelism, flatness, etc. of various discontinuous surfaces, regular and irregular annular workpieces (roundness error can be evaluated by four methods), and can provide eccentricity and phase of the parts. It can also be used for measuring parameters such as roundness, runout, single piece runout, and inter piece runout of various motor rectifiers (which can be evaluated using four methods), and can provide the eccentricity and phase of the parts.

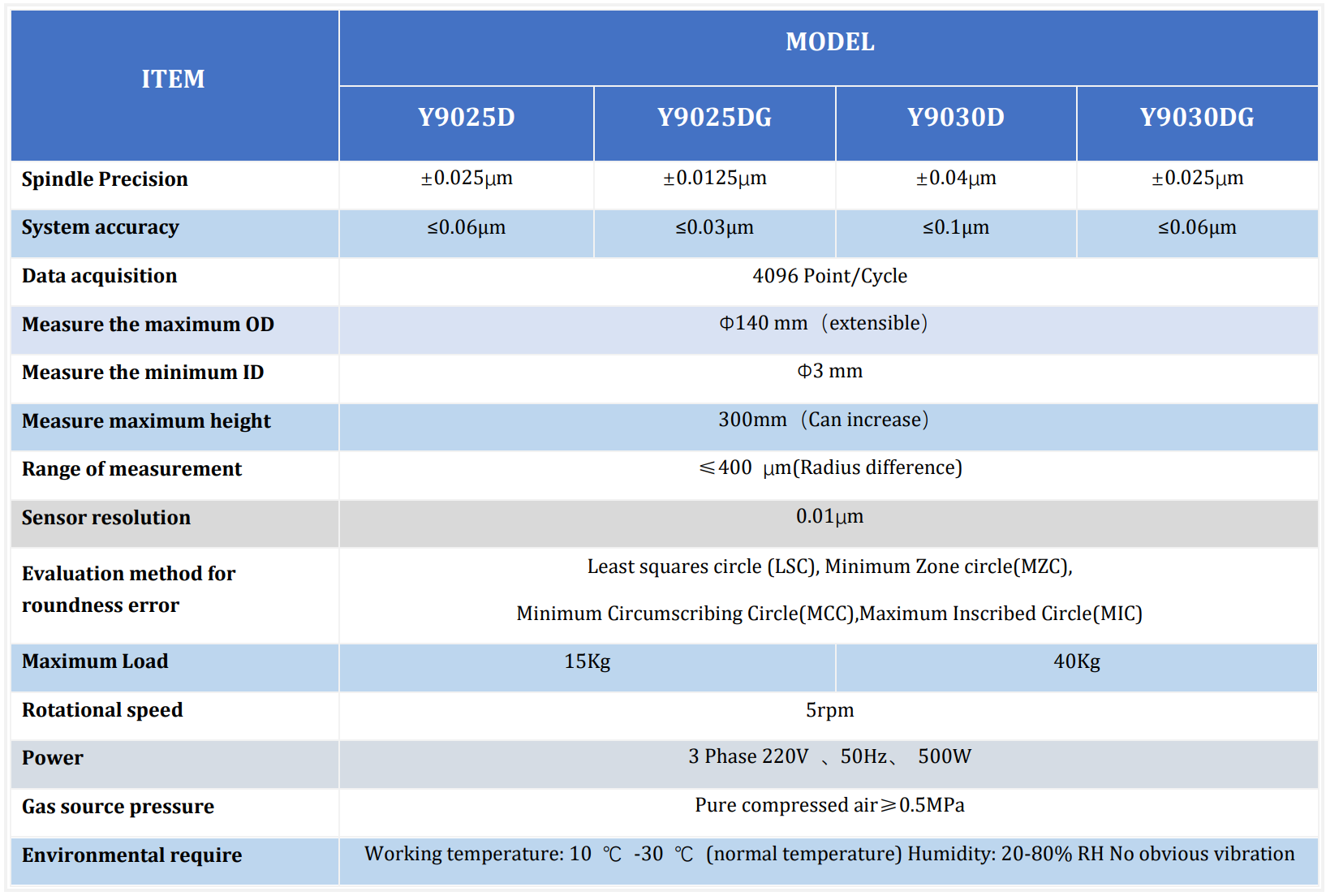

Evaluate method

Least squares circle (LSC),Minimum Zone circle(MZC),

Minimum Circumscribing Circle(MCC),Maximum Inscribed Circle(MIC)
