Indoor Comparator for the Calibration of long length

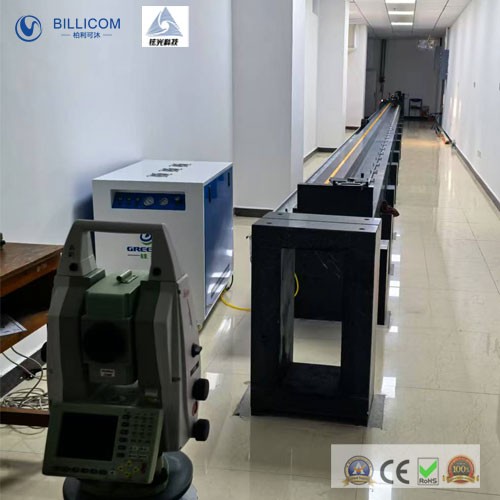

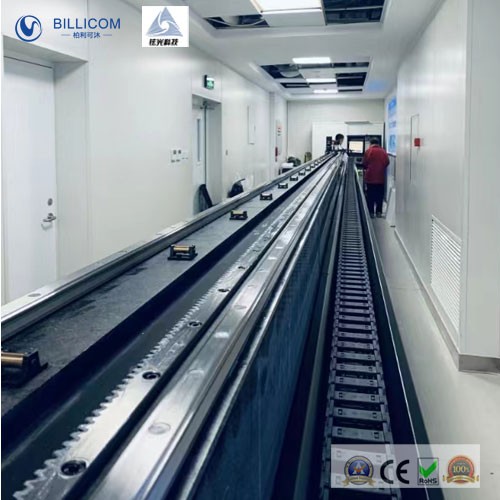

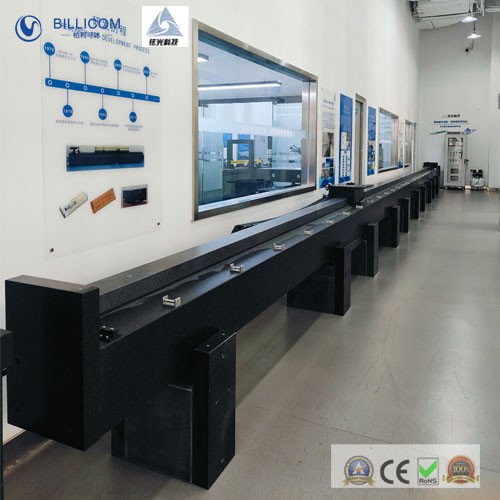

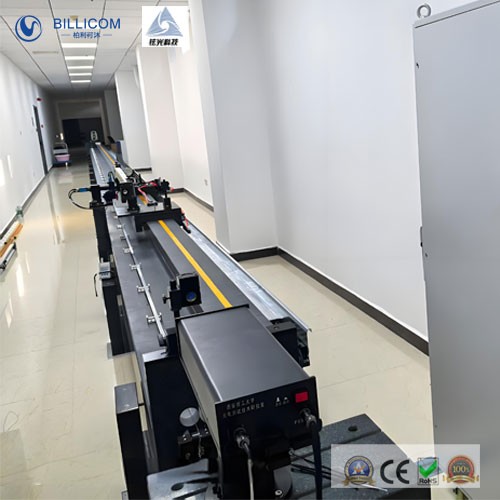

Indoor Comparator for the Calibration of long length mainly consists of a granite (marble) platform, air floating guide rail, laser interferometer, gas source, CCD image acquisition system, environmental parameter acquisition system, measurement and control system and software, and other auxiliary measurement devices. This device uses a laser interferometer as a position feedback sensor, which can achieve micrometer level fast (m/s) positioning, with an effective measurement range of not less than 80m. It can be widely used for the calibration and verification of linear length related quantities such as the consistency, repeatability, and indication error of various leveling scales, steel tapes, standard steel tapes, total station periodic errors and resolutions, as well as the consistency, repeatability, and indication error of handheld laser rangefinders on various reference surfaces.

Main functions：

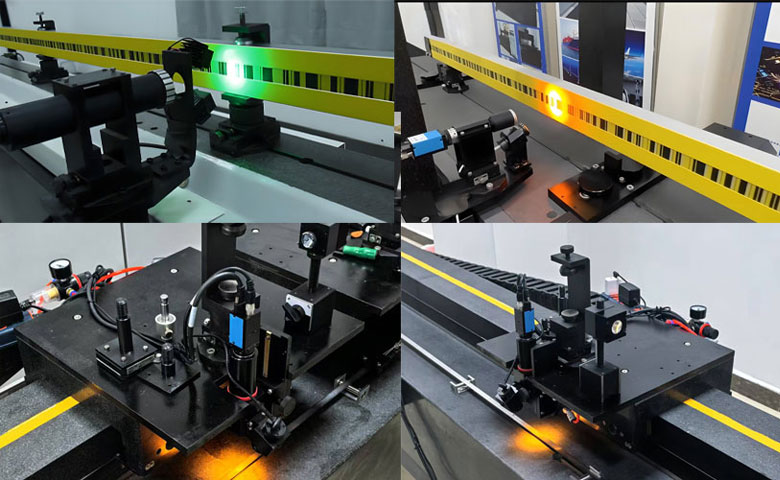

1. It has the function of automatically detecting the average length of meter intervals and the subdivision errors of each decimeter for 8 barcode leveling staff and 2 equidistant leveling staff, and automatically generating reports/reports;

2. It has the automatic detection function of total station cycle error and resolution;

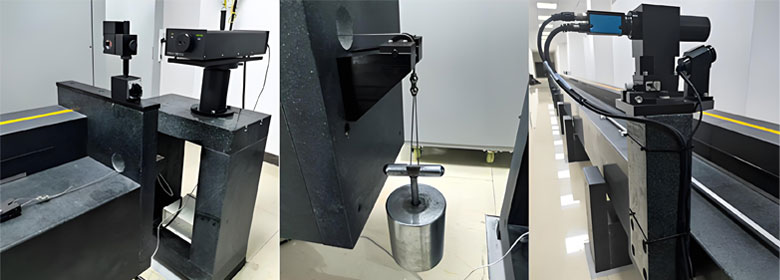

3. Equipped with automatic detection function for the indication error of steel tape measure and standard steel tape measure;

4. It has the detection function of consistency, repeatability, and indication error of the measurement of each reference surface of the handheld laser rangefinder;

5. Install reflective target balls on the moving platform for length comparison with other precision measuring instruments.

Note: The use of this standard device for testing various functions of surveying instruments and equipment can fully meet the requirements of current metrological verification regulations.

Applications：

LLSS-2 Indoor Comparator for the Calibration of long length is a high-precision equipment used for measuring and calibrating distance, which plays an important role in various situations that require accurate measurement of length or distance. The following are some usage scenarios of precision distance measurement standard devices:

Manufacturing industry: In the fields of mechanical manufacturing and precision engineering, these devices are used to calibrate and test the accuracy of equipment such as machine tools and machining centers, ensuring that the produced parts meet design specifications.

Quality control: The quality control department of the enterprise will use precision distance measuring devices to detect product dimensions and ensure that the products meet quality standards.

Research laboratory: When conducting physics, chemistry, or materials science experiments, researchers may need to accurately measure the size or spatial distribution of samples, and precision ranging devices play a key role here.

Surveying and Geographic Information Industry: Using precision ranging devices for measuring instrument calibration and collecting geospatial data.

Education and training: In the field of education, precision ranging devices can serve as teaching tools to help students learn and understand measurement techniques and principles.

Measurement and Calibration Services: Professional measurement and calibration service providers use precision ranging devices to provide calibration services to customers, ensuring that their measuring equipment is accurate and error free.

These scenarios demonstrate the importance of precision distance measurement standard devices in multiple industries, as they are key tools for ensuring measurement accuracy and product quality.
