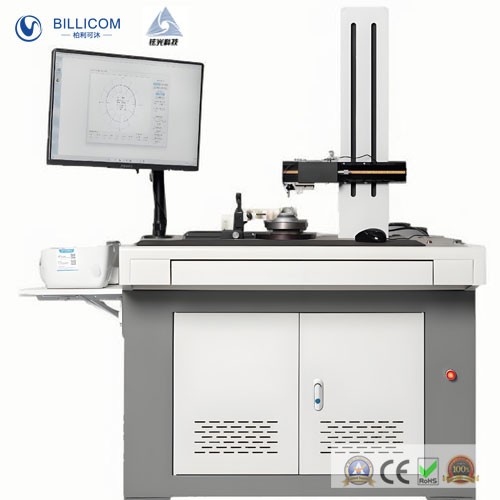

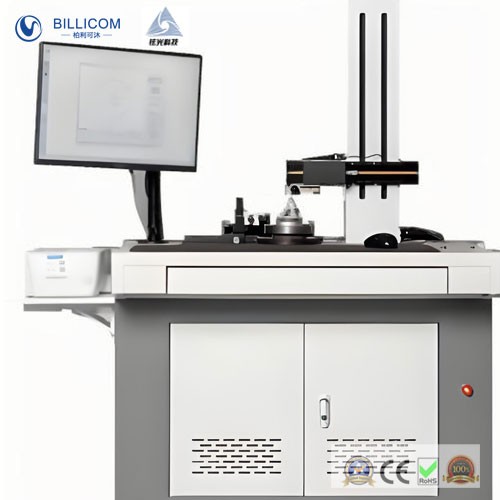

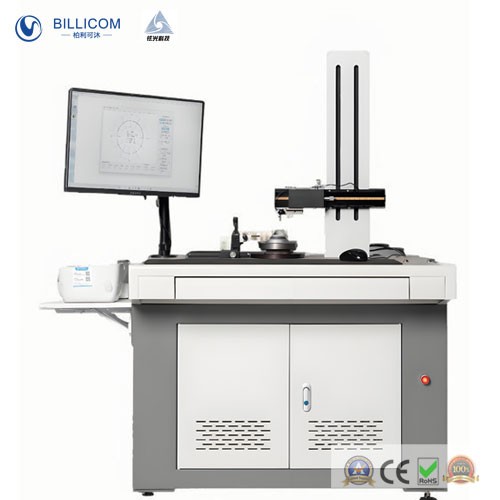

High Precision Roundness Measuring Instruments

Features：

High speed Precision Roundness Measuring Instruments

*The instrument has a high precision air bearing spindle and air filtration system, with a high-precision spindle that does not wear out and has a long service life;

*The instrument adopts the WINDOWS operating platform and professional measurement software, with a simple and intuitive measurement interface and convenient operation; Real time display of graphic data, saving and archiving, printing at any time, graphic analysis reports, intuitive and clear;

*The workpiece adjustment is convenient and fast, with high detection efficiency;

*There are no special requirements for the usage environment, and it can be used in workshops and metrology rooms;

*It has a massive database of measurement result statistics, making it easy to access measurement results and work online.

*It has powerful measurement and analysis functions, such as analyzing waviness, verticality, etc.

*It can perform spectral analysis on the surface state of parts and provide the amplitude of any wave;

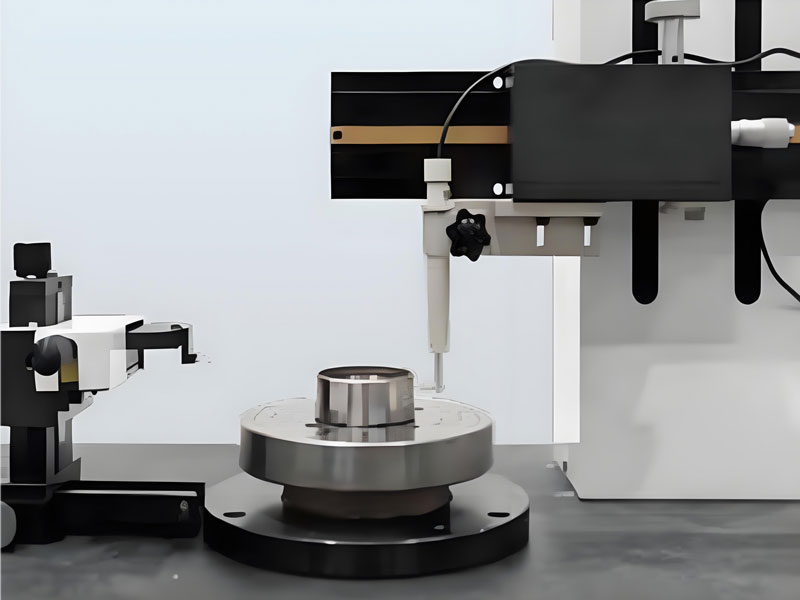

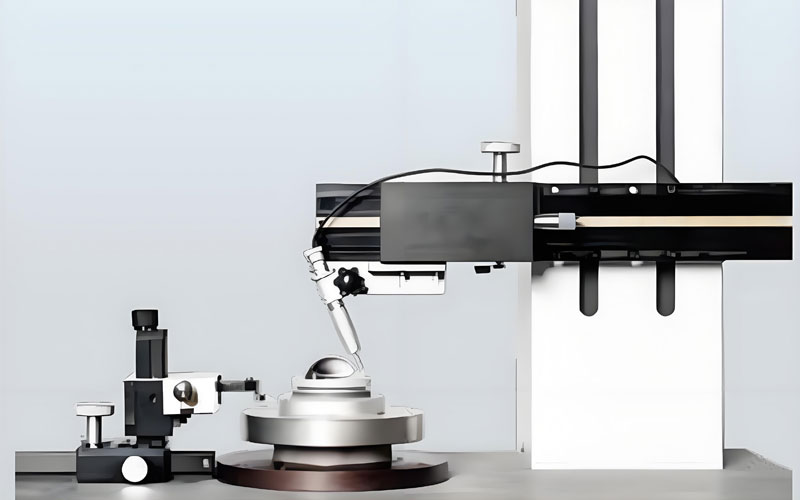

* The instrument comes standard with two types of sensors that can meet the measurement of various diameters and apertures;

*The measurement operation is set with mouse and keyboard shortcuts, and users can freely choose according to their operating habits;

*It can be directly used for machine tool adjustment, part process analysis and testing, inter process inspection, or final inspection of finished parts.

This instrument is suitable for various annular workpieces, mainly used for measuring the roundness, waviness, coaxiality, perpendicularity, parallelism, flatness and other parameters of various bearing inner and outer ring raceways and steel ball rollers (roundness error can be evaluated by four methods), and can provide the eccentricity and phase of the parts.

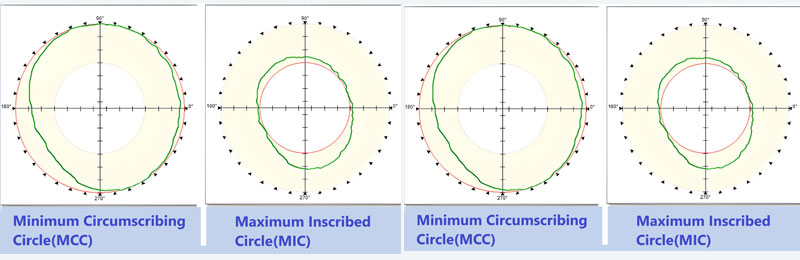

Evaluate method

Least squares circle (LSC),Minimum Zone circle(MZC),

Minimum Circumscribing Circle(MCC),Maximum Inscribed Circle(MIC)
